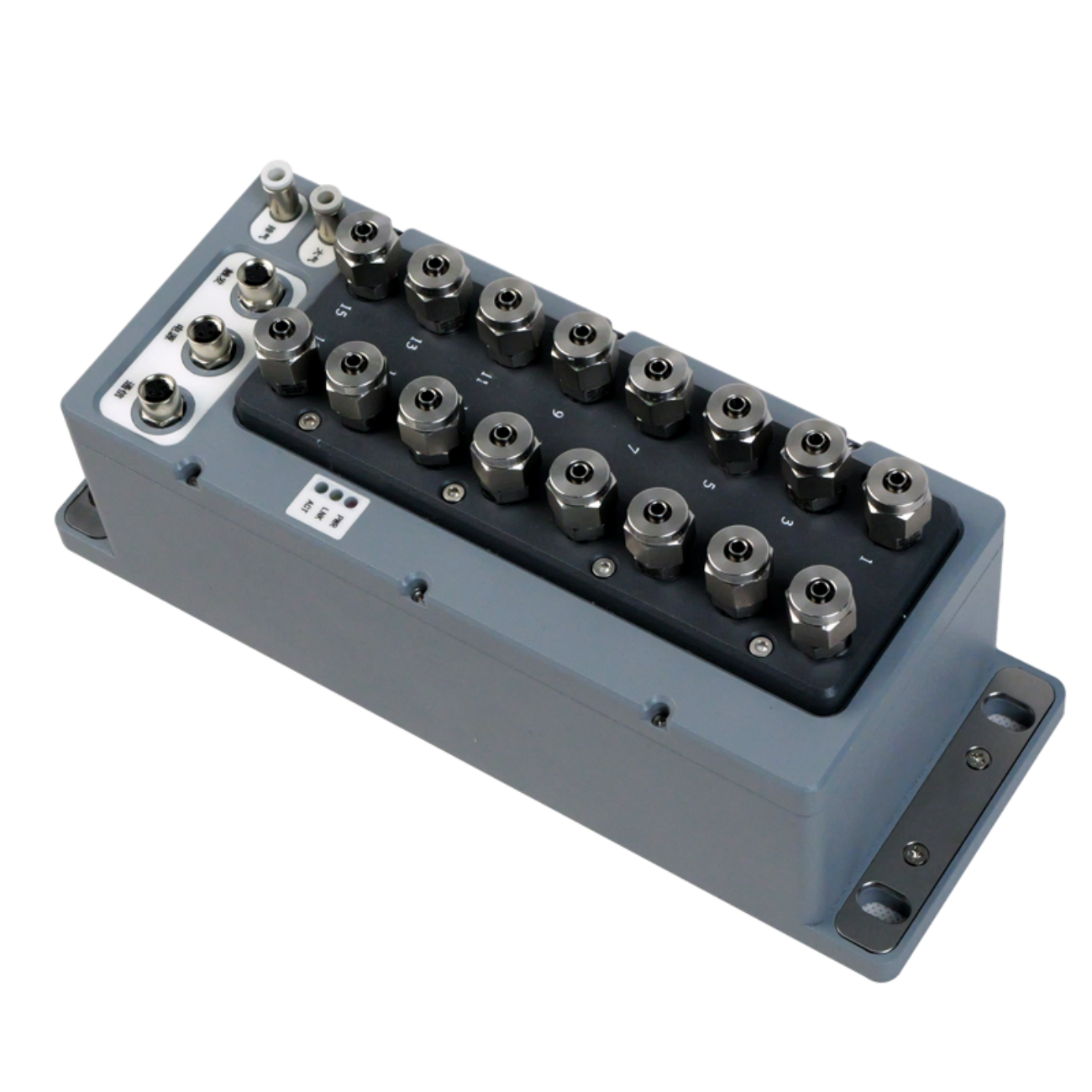

Gas Pressure Scan Valves-16 - channel Version
Channel count: 16
Resolution: 24bit
Medium: Clean air or nitrogen gas
Power supply: (18-36)VDC
Operating temperature range: (-20~70)℃
Operating environment humidity: Relative humidity < 95%RH, non-condensing
Range: 0-500psi standard range selection, other customizations available
Accuracy class: 0.05 class, 0.1 class
Clock synchronization function: Supports IEEE1588
Communication protocol: TCP/IP, UDP
Sampling frequency: 0-500Hz/CH adjustable
Calibration function: Zero point calibration, multi-point calibration, full-scale calibration
