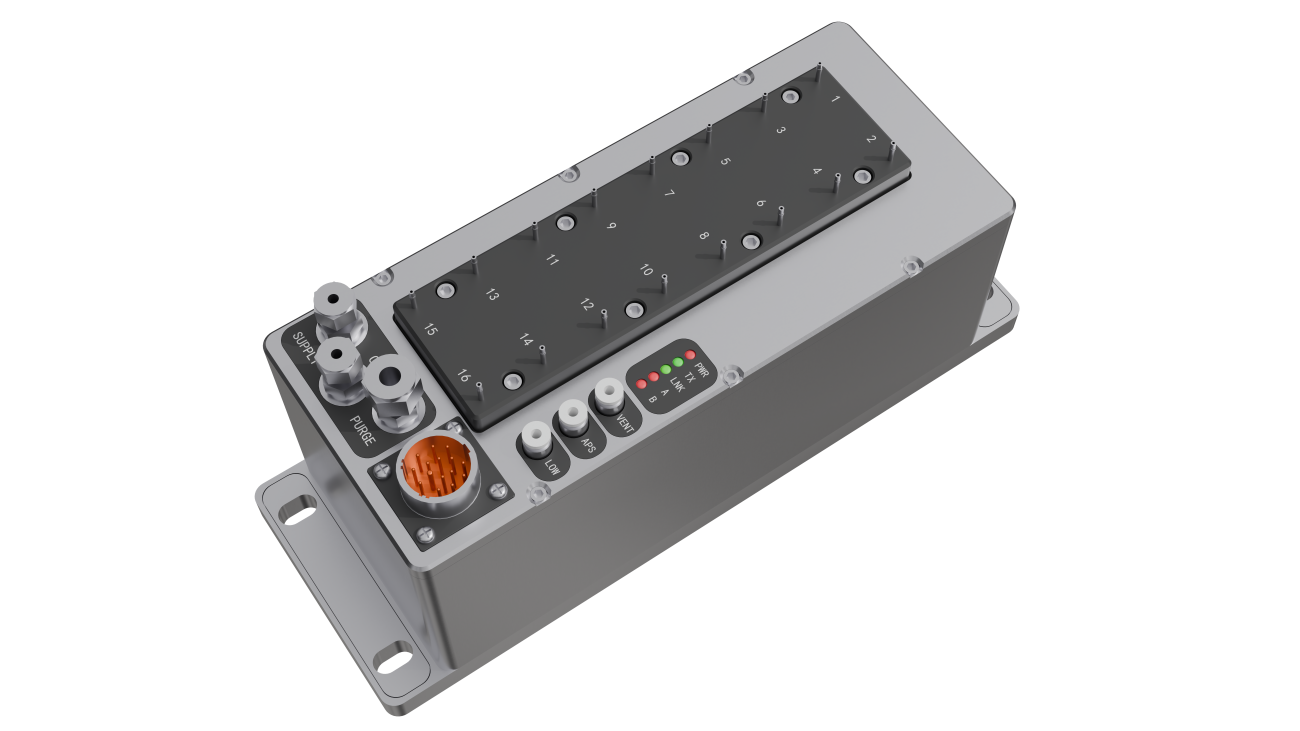

Liquid Pressure Scan Valves- Exhaust Version
Number of channels: 16
Resolution: 24 bits
Medium: Clean water or lubricating oil
Power supply: (18-36)VDC
Operating temperature range: (-20~70)℃
Working environment humidity: Relative humidity < 95%, non-condensing
Range: 0-500psi standard range selection, others can be customized
Accuracy class: 0.05 class, 0.1 class
Clock synchronization function: Supports IEEE1588
Communication protocol: TCP/IP, UDP
Sampling frequency: 0-500Hz/CH adjustable
Calibration function: Zero point calibration
Exhaust function: Yes
