Detailed Parameters

Operating speed: 0.1 - 0.95 Ma; 1.1 - 2.0 Ma

Operating temperature: -20 to 400℃; -20 to 800℃; -20 to 1300℃

Total temperature recovery coefficient: > 0.8

Speed accuracy: 1 m/s

Angle accuracy: ±1°

Angle range: Refer to the type of multi-hole probe

Probe material: 304 or 316L stainless steel, other high-temperature alloys available upon customization.

Probe size: Customized in L-shaped, comb-shaped, rake-shaped, etc.

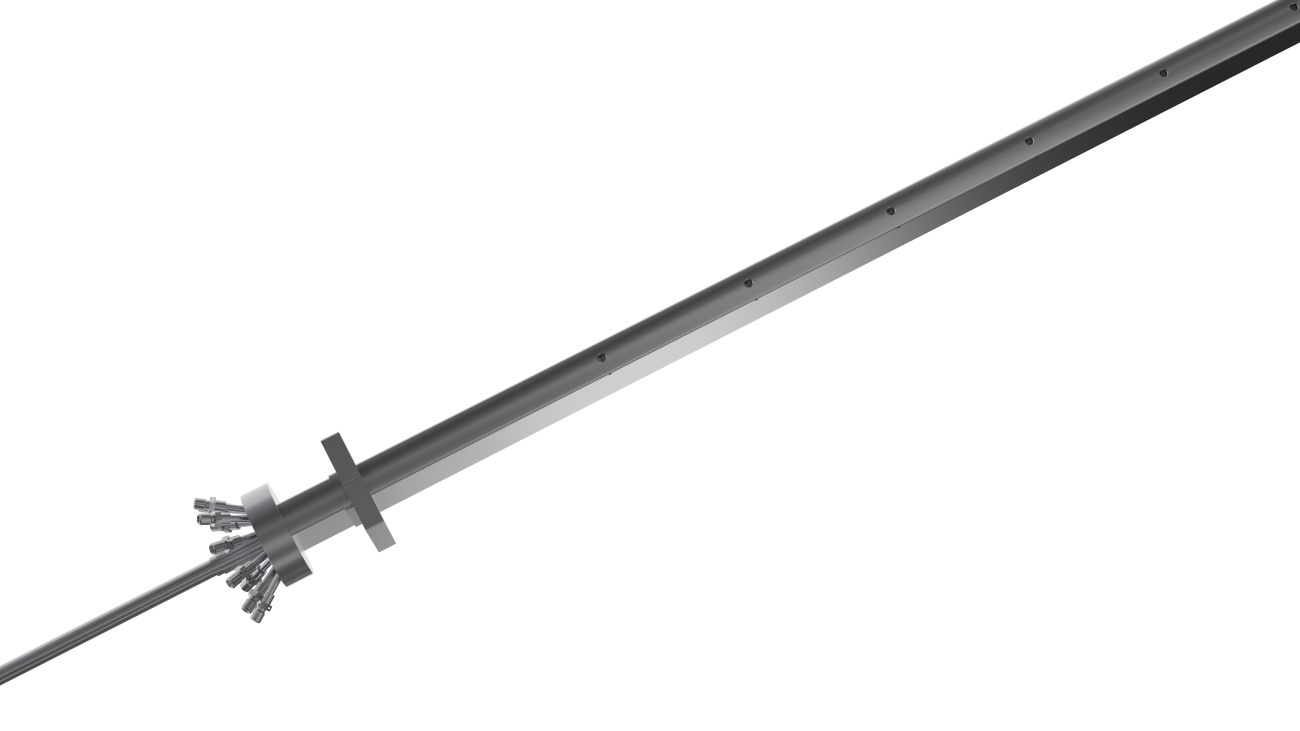

Pneumatic probes are non-standard customized products and need to be designed and processed according to the requirements of the working conditions.
