Products & Services
Pneumatic Probes

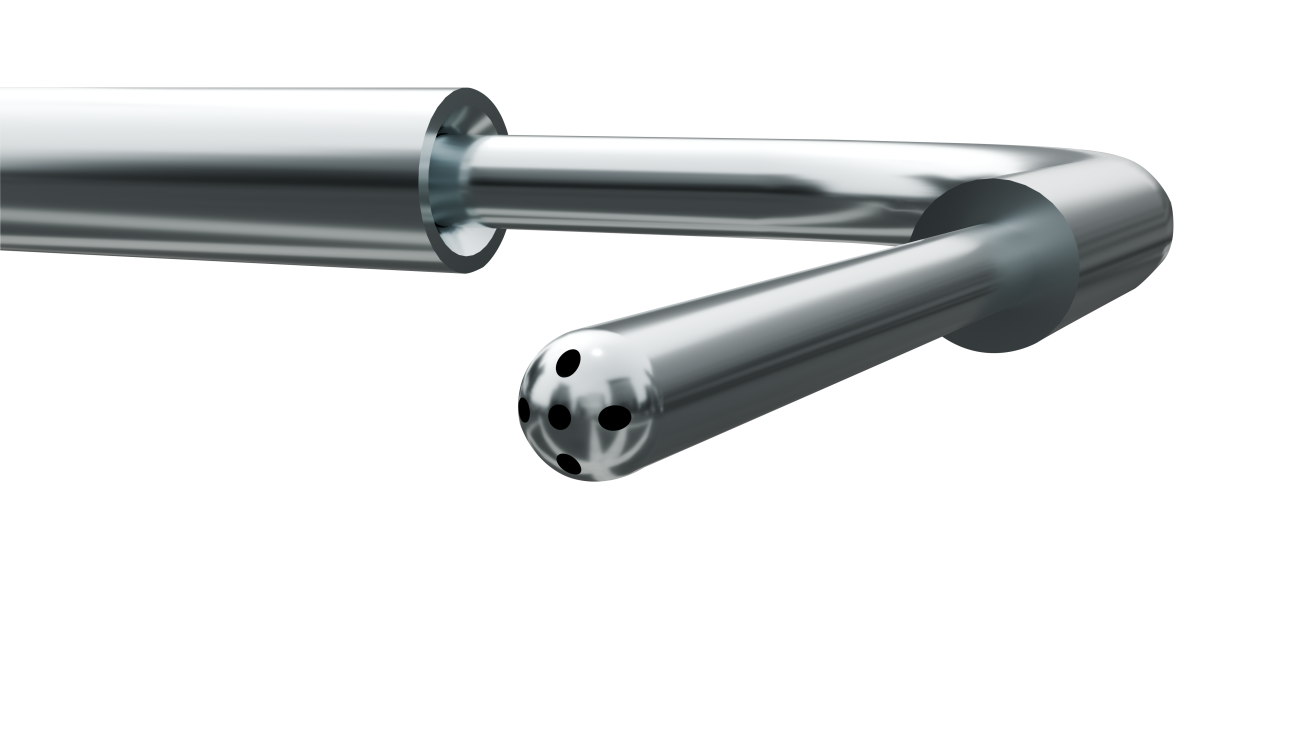

Five - hole Probe
Operating speed: 0.1 - 0.95 Ma; 1.1 - 2.0 Ma
Operating temperature: -20 - 400℃; -20 - 800℃; -20 - 1300℃
Speed accuracy: 1 m/s
Angle accuracy: ±1°
Angle range: ±30° (pitch angle and yaw angle)
Probe material: 304 or 316L stainless steel, other high-temperature alloys available upon request
Probe size: Straight, L-shaped, comb-shaped, mesh-shaped, etc. available upon request
Pneumatic probes are non-standard custom products and need to be designed and processed according to the requirements of the operating conditions.
